Universal 2.5" Bore 8" Stroke Double Acting Hydraulic Cylinder with Swivel Eye - Heavy Duty Magister Cylinder (2.5x8) for Construction Equipment, Agricultural Machinery & Industrial Applications

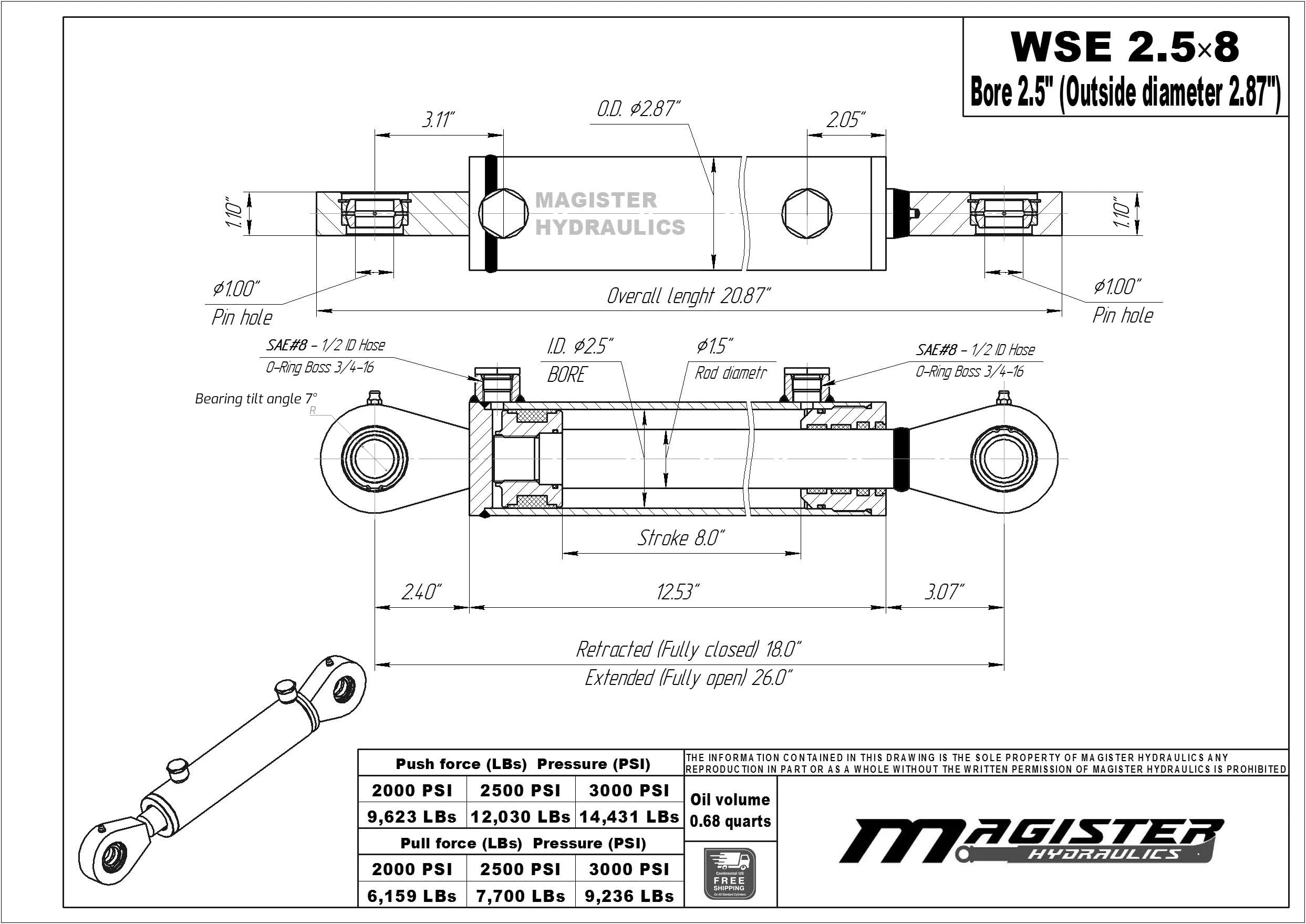

Welded Hydraulic Cylinder Swivel Eye 3500 PSI. This cylinder was designed for use in various types of mobile equipment such as waste, recycling, construction, transportation, agriculture, material handling, etc. Its’ unique rigid welded design, high tensile welded steel end mounts, durable bearings, threaded gland and top quality seals allow Magister cylinders to work in harsh conditions and fit most of applications. All cylinders are fully and easily maintainable. Each cylinder is pressure tested at 150% of its working pressure before shipping. The bearings work perfect for pivoting applications. Applications: Welded Double Acting Hydraulic Cylinder Swivel Eye.Tube: High tensile honed cold drawn tube.Rod: High tensile ground & polished hard chrome plated rod.Gland: Precision threaded gland with wear rings for long life.Piston: High tensile steel for heavy duty applications.Base end: Welded steel mounts with spherical bearings.Rod seals: Top quality five component compact seals for excellent performance.Pressure: 3500 PSI Color: Black. Spherical bearings on both sides of hydraulic cylinder For all dimensions, please refer to the drawing below
